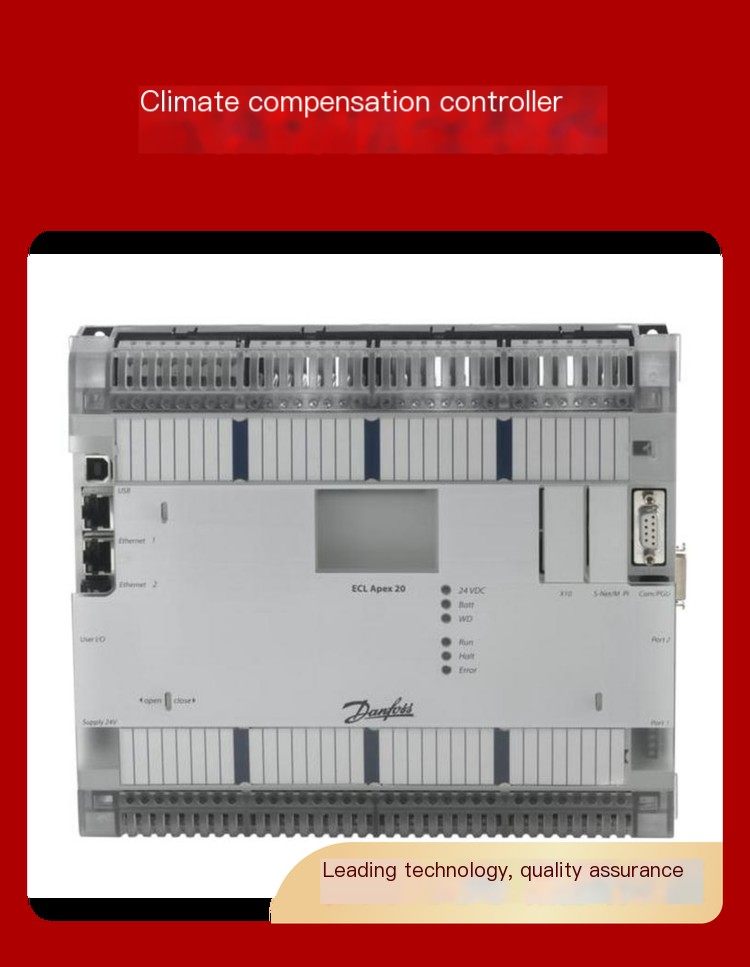

ECL Apex 20 Climate Compensation Controller Heat Exchange Station Control Programmable Multifunctional

Photos

Attributes

ECL Apex 20 Climate Compensation Controller Heat Exchange Station Control Programmable Multifunctional

$negotiable /

Reference Price

(Min. Order)

Ship From

Beijing

Shipping

To be negotiated with the supplier

Customization

For customization requests, please

Product Recommendations

View Details

Climate Compensator Intelligent Control Heating Temperature Comfort Electronic Controller ECL

$negotiable

View Details

Danfoss FC-102 series three-phase vector frequency converter fan and water pump dedicated

$328.57

View Details

AMV 25/35 three-point control drive automatically adapts to travel, lightweight and sturdy

$107.14

View Details

High performance universal frequency converter FC-360 harsh environment wide temperature and wide voltage

$negotiable

View Details

AME 15 (SE) /16 /25 /35 Analog Control Driver Overload Protection

$negotiable

View Details

Self operated pressure controller for high-precision control of district heating system

Brand

Brand name

IO point

10DI+5Pt1000+9AI+5DO+3AO, expandable up to 60 modules

Communication protocol

Supports Ethernet TCP/IP, fieldbus Profibus/Modbus/Long/BACnet, etc.

Environmental temperature

When installed on a vertical backplane: 0-55; Other installation methods: 0-40; Program capacity: 1MB RAM+1MB Flash; Accessory Name: ECL Apex 20 Touchscreen ECA 20

Memory

1MB RAM+1MB Flash

Battery type

CR 2032

Processor type

Based on Motorola 32-bit microprocessor CF5272

Quality certification

CE Logo

Part number

ECL Apex 20

Temperature range

-20~85 (Storage Temperature); Control mode: It has both heating control function and programmability

Weight

1.15KG

System characteristics

open system, providing OPC support

IP rating from the front of the panel

IP 65

Main frequency

66MHz

Relative humidity

10-95 no condensation

Expansion capability

expandable to up to 12 serial interfaces

Touch screen resolution

640 * 480

Protection level

IP 20

Shell material

PC/ABS plastic

Installation method

rail EN 50022-35 (2 * 35mm) or screw 4 * M4

Communication interface

USB port, two 10M/100M adaptive Ethernet ports, two RS485 interfaces

Marketable location

Beijing; Zhejiang; Chongqing
