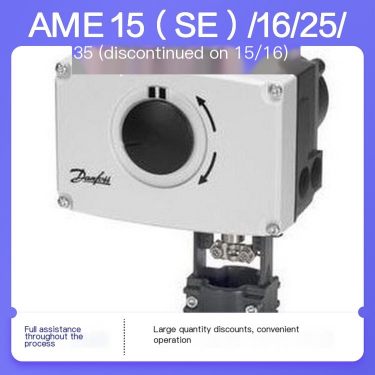

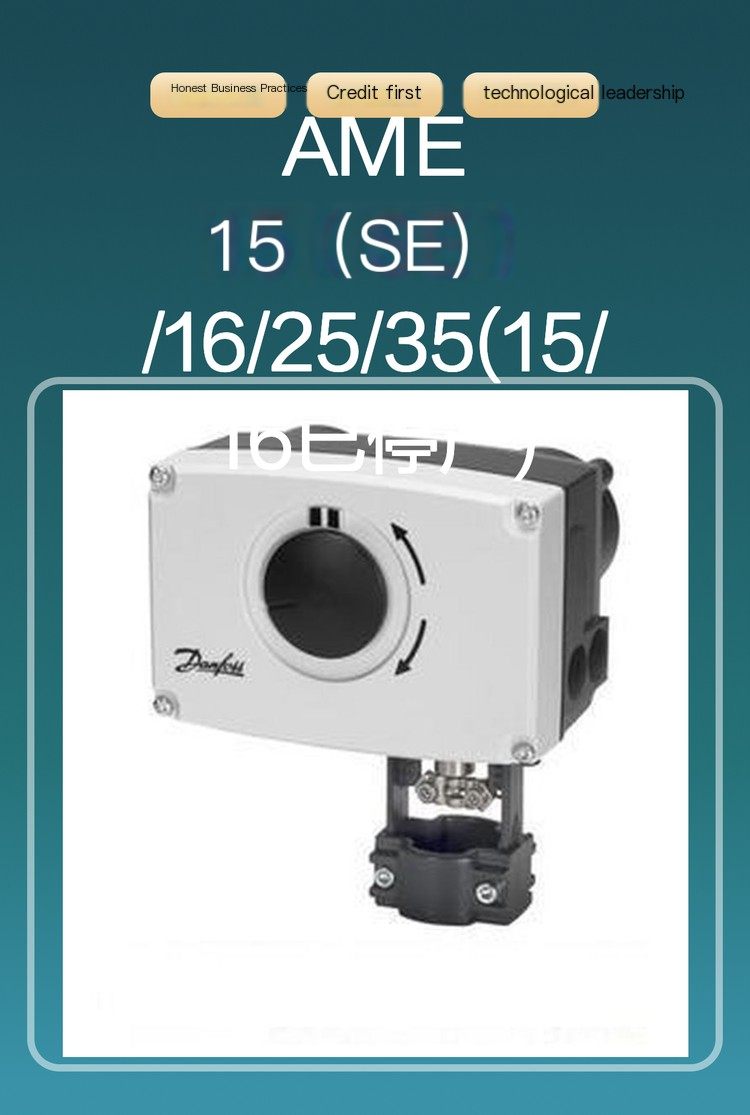

AME 15 (SE) /16 /25 /35 Analog Control Driver Overload Protection

Photos

Attributes

AME 15 (SE) /16 /25 /35 Analog Control Driver Overload Protection

$negotiable /

Reference Price

(Min. Order)

Ship From

Beijing

Shipping

To be negotiated with the supplier

Customization

For customization requests, please

Product Recommendations

View Details

Climate Compensator Intelligent Control Heating Temperature Comfort Electronic Controller ECL

$negotiable

View Details

Danfoss FC-102 series three-phase vector frequency converter fan and water pump dedicated

$328.57

View Details

AMV 25/35 three-point control drive automatically adapts to travel, lightweight and sturdy

$107.14

View Details

High performance universal frequency converter FC-360 harsh environment wide temperature and wide voltage

$negotiable

View Details

Self operated pressure controller for high-precision control of district heating system

$negotiable

View Details

ECL Apex 20 Climate Compensation Controller Heat Exchange Station Control Programmable Multifunctional

Brand

AME

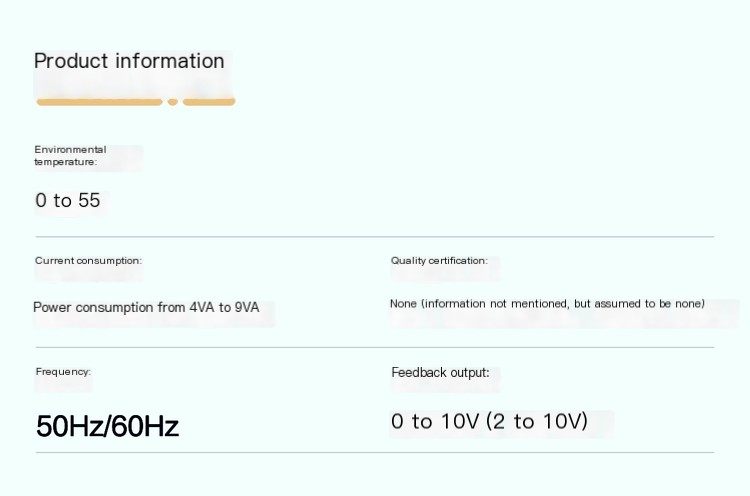

Environmental Temperature

0 to 55

Current Consumption

Power Consumption 4VA to 9VA

Quality Certification

None (Information not mentioned, but default is none)

Frequency

50Hz/60Hz

Feedback Output

0 to 10V (2 to 10V)

Protective Measures

None (Information not mentioned specific protective measures, but default is no special protection)

Application Type

Industrial Equipment

Power Supply Voltage

24V~; +10 to -15%

Driving Force

500N to 600N

Part Number

AME 15 (SE)/16/25/35

Power Consumption

4VA

Indicator Light

LED indicator light on printed circuit board

Operation Mode

Manual operation

Control Mode

Analog control

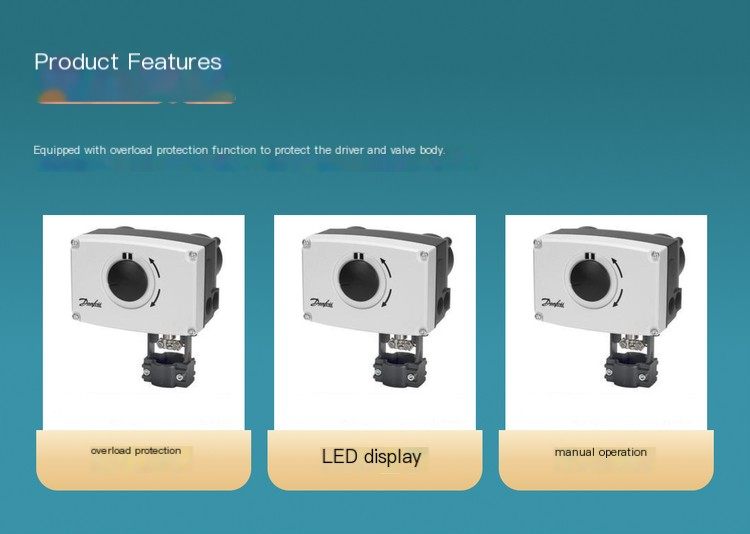

Functional Features

With overload protection function

Temperature Range

Maximum medium temperature of 150 ℃ (using adapter or horizontal installation at 200 ℃)

Maximum Travel

15mm

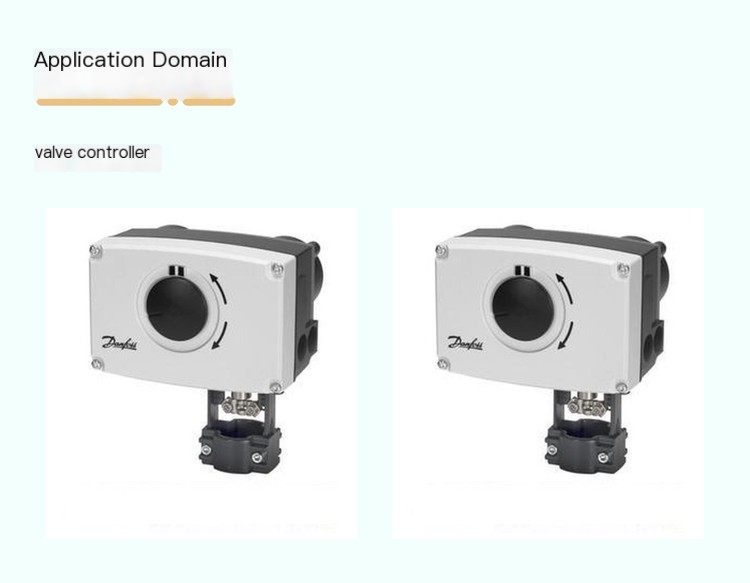

Application

Used in VRB, VRG, VF, VL, VFS 2 and VEFS 2 valves

Control Input

0 to 10V (2 to 10V)

Weight

0.8KG to 1.70KG

Certification

None (information not mentioned, but default is none)

Protection Level

IP 54

Marketable Location

Beijing; Zhejiang; Chongqing
