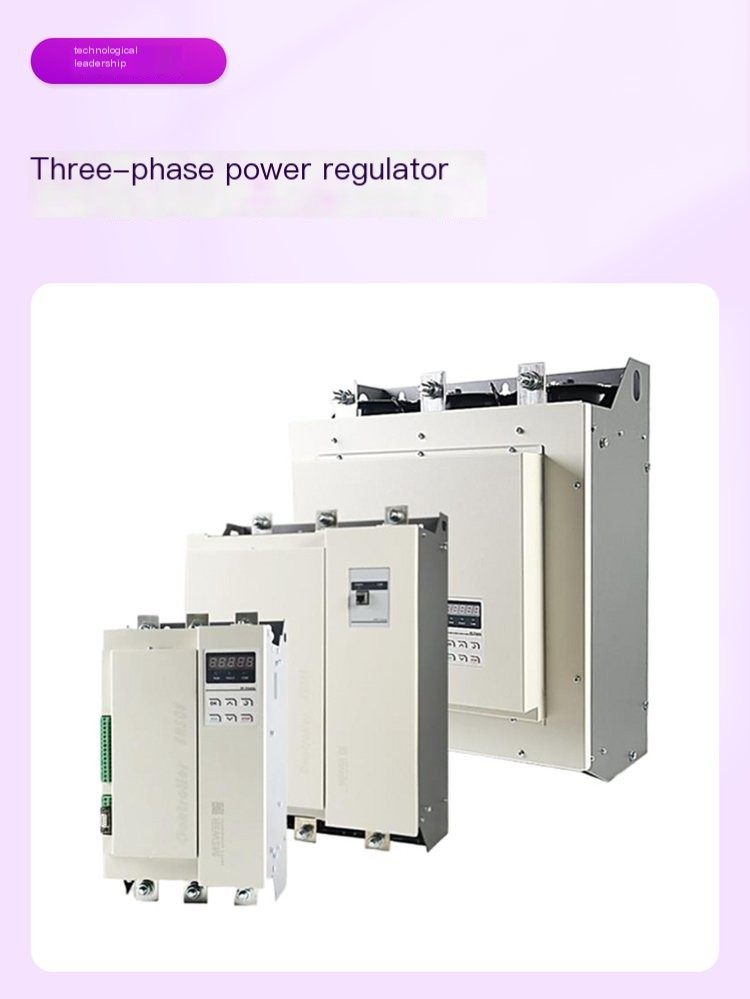

SR30ESR30E three-phase power regulator with constant voltage and constant current control suitable for various load types

Photos

Attributes

SR30ESR30E three-phase power regulator with constant voltage and constant current control suitable for various load types

$negotiable /

Reference Price

(Min. Order)

Ship From

Chengdu, Sichuan

Shipping

To be negotiated with the supplier

Customization

For customization requests, please

Product Recommendations

View Details

IGBT power supply PT three-phase series DC power supply with water-cooled and air-cooled options for high efficiency and stabili

$negotiable

View Details

SR10TSR10T single-phase power regulator with constant voltage, current, power and multiple triggering modes

$negotiable

View Details

GBTIGBT Power PS Single phase Series DC Power Supply Efficient and Stable Air Cooling Design

$negotiable

View Details

SR30LSR30L Three phase Power Regulator Constant Voltage and Constant Current Control Industrial Grade Governor

$negotiable

View Details

High frequency switch DC electroplating power supply, environmentally friendly rectifier power supply, energy-saving and stable

$negotiable

View Details

Customized High Power DC Power Supply Overcurrent Protection Multi Machine Joint Control Industrial Stable Output

$negotiable

View Details

DCP30 series controllable rectifier DC power supply with constant voltage and current multi protection function

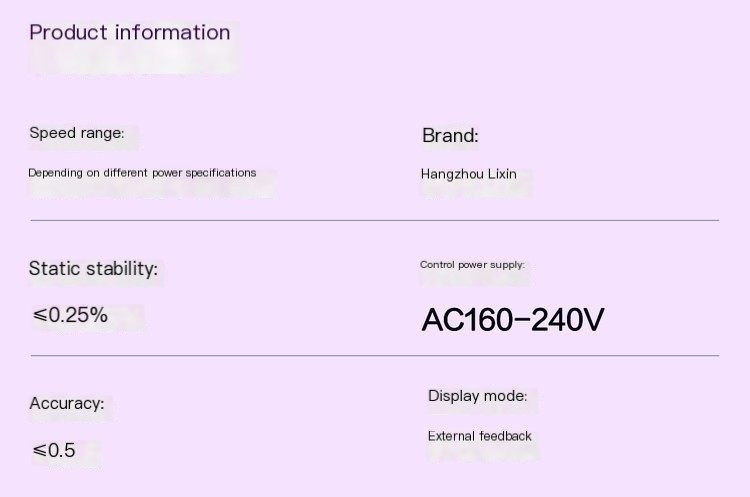

Brand

Hangzhou Lixin

Speed range

Depending on power specifications

Static stability

≤ 0.25%

Support for customized processing

Yes

Operating environment

-10-+50 ℃,>45 ℃ requires derating; Altitude>1000 meters requires derating according to GB/T3859.2-93

Extended functions

External feedback, external display, PROFIBUS-DP, MODBUS TCP/IP, etc.

Control mode

Constant voltage, constant current, constant power, open-loop control

Control power

AC160-240V

Port

0-5V/0-10V/0-20mA/4-20mA analog input, 3-channel switch input, 1-channel switch output, MODBUS-RTU

Protection function

Phase loss, overcurrent, overheating, overload, load disconnection, frequency abnormality, etc.

Accuracy

≤ 0.5

Display mode

External feedback

Appearance

Multiple specifications available (300 * 154 * 208, etc.)

Trigger mode

Phase shift trigger, zero crossing trigger (expandable analog segmented trigger)

Power parameters

Main circuit: 3AC260-440V (customizable 600V, 1140V)

Heat dissipation mode

Self cooling

Operation mode

Phase shifting trigger, zero crossing trigger (expandable analog segmented trigger)

Load type

Customized resistive, inductive, and programmable load characteristics

Maximum output rating

Depending on power specifications

Weight

Multiple weight options (7.3-55k)

Frequency

45HZ-65HZ

Marketable location

Shanghai; Tianjin; Guangdong; Fujian; Anhui; Gansu; Hebei Province; Henan; Hubei; Hunan; Jiangsu; Jiangxi; Inner Mongolia; Ningxia; Qinghai; Shandong; Shanxi; Shaanxi Sichuan Xizang; Xinjiang; Yunnan; Zhejiang; Chongqing
