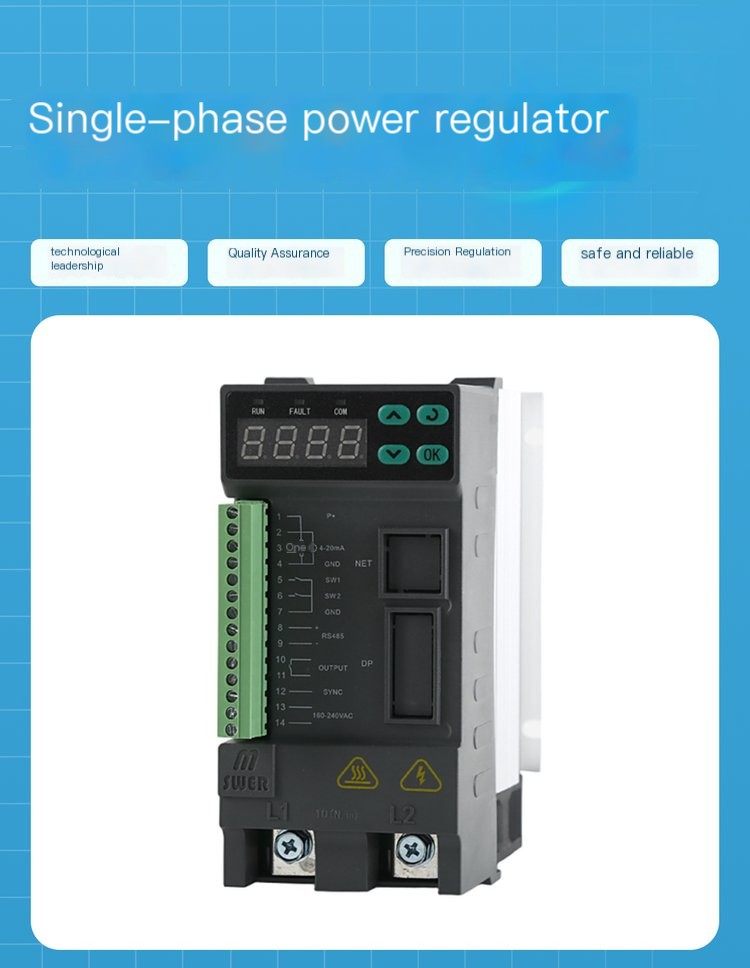

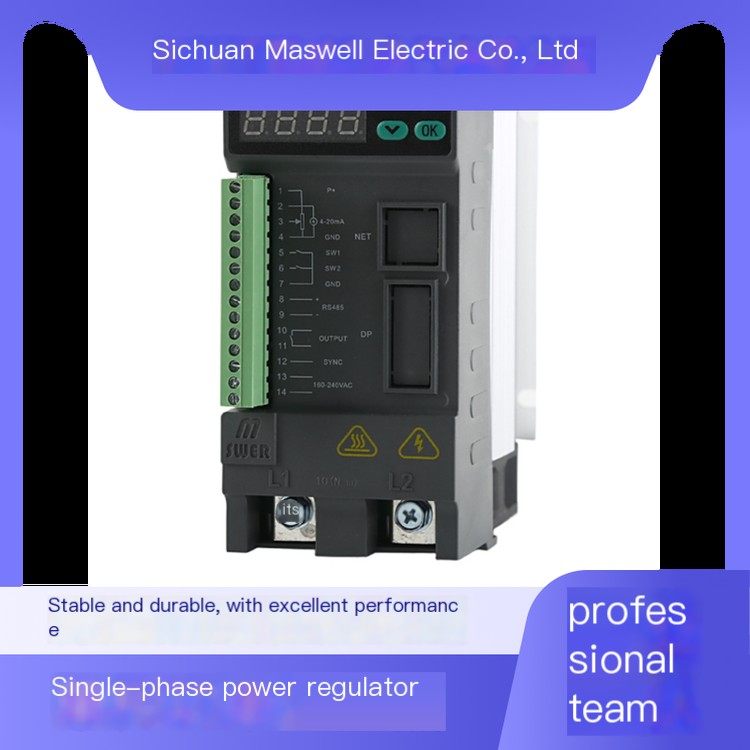

SR10TSR10T single-phase power regulator with constant voltage, current, power and multiple triggering modes
$negotiable /
Reference Price (Min. Order)
Ship From
Chengdu, Sichuan
Shipping
To be negotiated with the supplier
Customization
For customization requests, please
Ask us in WhatsApp:
Scan the QR code
Product Recommendations
Key Attributes
Details
Price Disclaimer
Brand
Brand Name

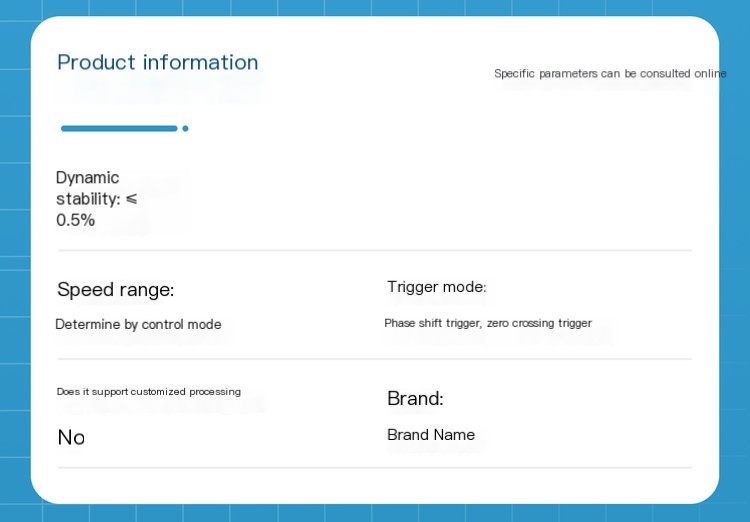

Dynamic Stability
≤ 0.5%
Control Mode
constant voltage, constant current, constant power, open-loop
Speed Range
Determine by Control Mode
Port
0-5V/0-10V/0-20mA Analog Input, 1-channel Switching Input, MODBUS-RTU
Trigger Mode
Phase Shift Trigger, Zero Crossing Trigger
Support for Processing Customization
No
Operating Environment
-10-+50 ℃,>45 ℃, derating required; Altitude>1000 meters requires derating according to GB/T3859.2-93
Display Mode
0-5V/0-10V/0-20mA/4-20mA analog input
Expansion Module
temperature control, TRMS true effective value, external display
Accuracy
± 1%
Power Parameters
main circuit: φ 1AC110-440
Frequency
45HZ-65HZ
Load Type
current limiting, voltage limiting programmable load control
Weight
1.2kg
Operation Mode
phase-shifting trigger, zero crossing trigger
Appearance
160mm * 80mm * 128mm
Stability Accuracy
static stability ≤ 0.5
Maximum Output Quota
various rated values according to specifications
Protection Function
phase loss, overcurrent (hardware overcurrent inspection), overheating, overload, load disconnection
Heat Dissipation Method
self cooling
Marketable Location
Shanghai; Tianjin; Guangdong; Fujian; Anhui; Gansu; Hebei Province; Henan; Hubei; Hunan; Jiangsu; Jiangxi; Inner Mongolia; Ningxia; Qinghai; Shandong; Shanxi; Shaanxi Sichuan Xizang; Xinjiang; Yunnan; Zhejiang; Chongqing
