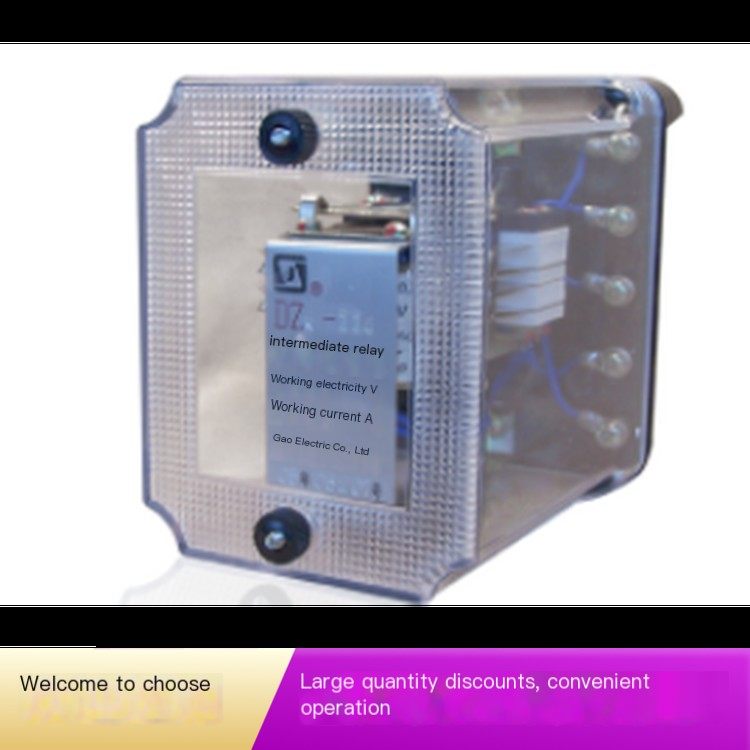

DZK-100 series fast intermediate relay power system secondary circuit control
$negotiable /
Reference Price (Min. Order)
Ship From
Suzhou, Jiangsu
Shipping
To be negotiated with the supplier
Customization
For customization requests, please
Ask us in WhatsApp:
Scan the QR code
Product Recommendations
Key Attributes
Details
Price Disclaimer
Brand
Less than 50%~70% Rated Voltage
Coil Release Voltage
At rated capacity, the voltage coil power consumption of the relay is not greater than 8
Power Consumption
DC: 0.25A, 0.5A, 1A, 2A, 4A
Rated Operating Current
DC: 220V, 110V, 48V, 24V
Operating Voltage

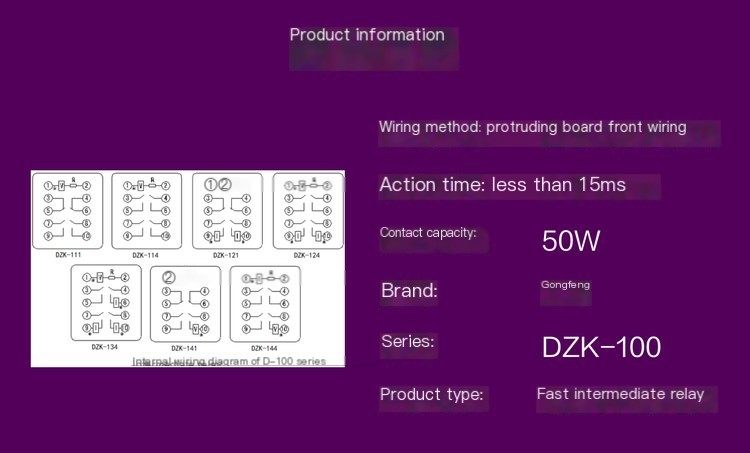

Protruding Board Front Wiring
Wiring Method
Same as Rated Operating Current
Rated Holding Current
Action Time
Less than 15ms
Contact Capacity
50W
Auxiliary Contact Type
None
Holding Value
Products with current holding windings, holding current not exceeding 80% of rated holding current
Action Current
Not exceeding 80% of rated current
Contact Method and Quantity
Double normally open
Dielectric Strength
Capable of withstanding 2000V (effective value) 50Hz AC voltage test lasting for 1 minute
Series
DZK-100
Product Features
Used for secondary circuit relay protection and automatic control lines in power systems, expanding control range
Contact Long term Allowable Current Connection
5A
Return Value
Not less than 5% rated value
Control Power Frequency
50Hz
Coil Pull in Voltage
Not more than 80% rated current
Product Type
Fast intermediate relay

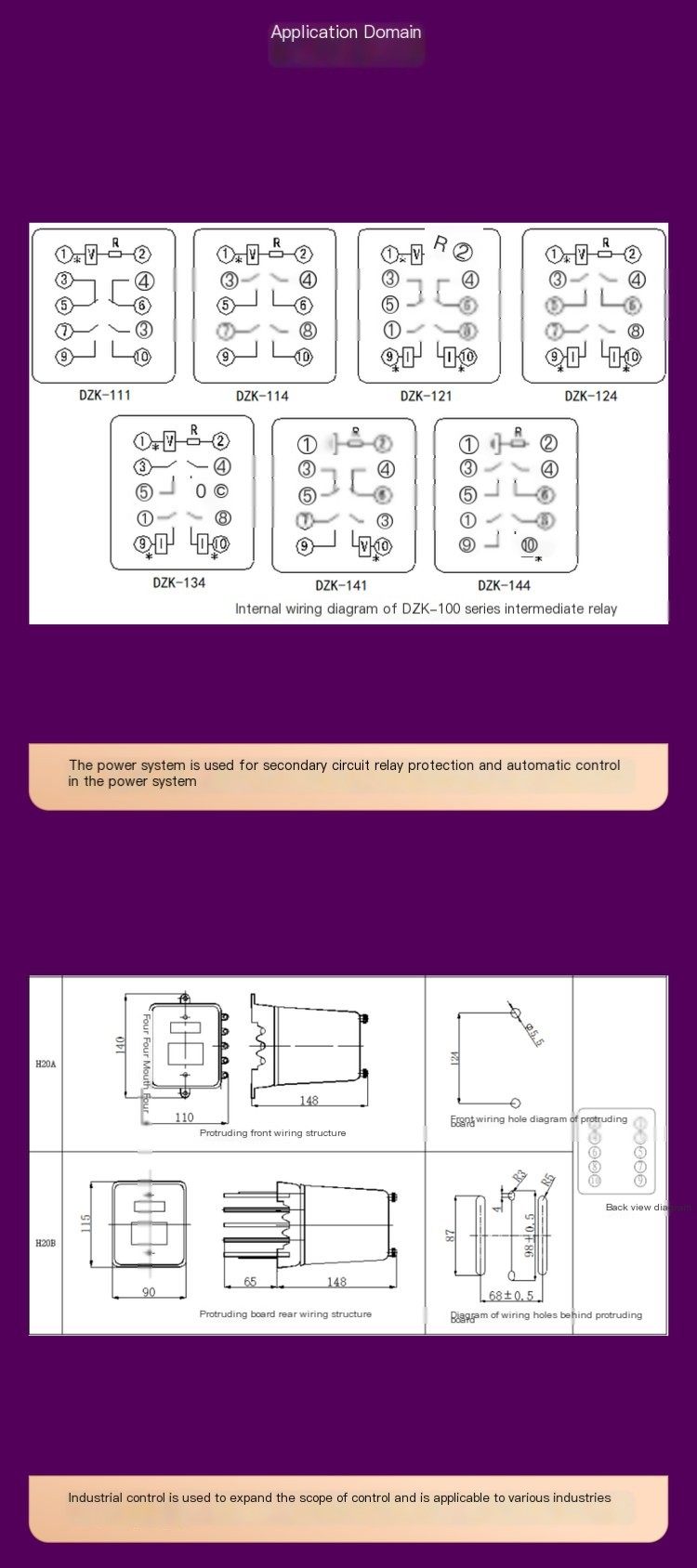

Application Field
Secondary circuit relay protection and automatic control lines in power systems
Shell Series
10 series
Marketable Location
National
