DZS-100 series intermediate relay DC operation protection circuit delay action
$negotiable /
Reference Price (Min. Order)
Ship From
Suzhou, Jiangsu
Shipping
To be negotiated with the supplier
Customization
For customization requests, please
Ask us in WhatsApp:
Scan the QR code
Product Recommendations
Key Attributes
Details
Price Disclaimer
Brand
All relay circuits can withstand AC 50 Hz, voltage 2000 V, and a 1-minute test between the outer shell and non electrified metal parts, as well as between circuits that are not electrically connected.
Insulation Strength

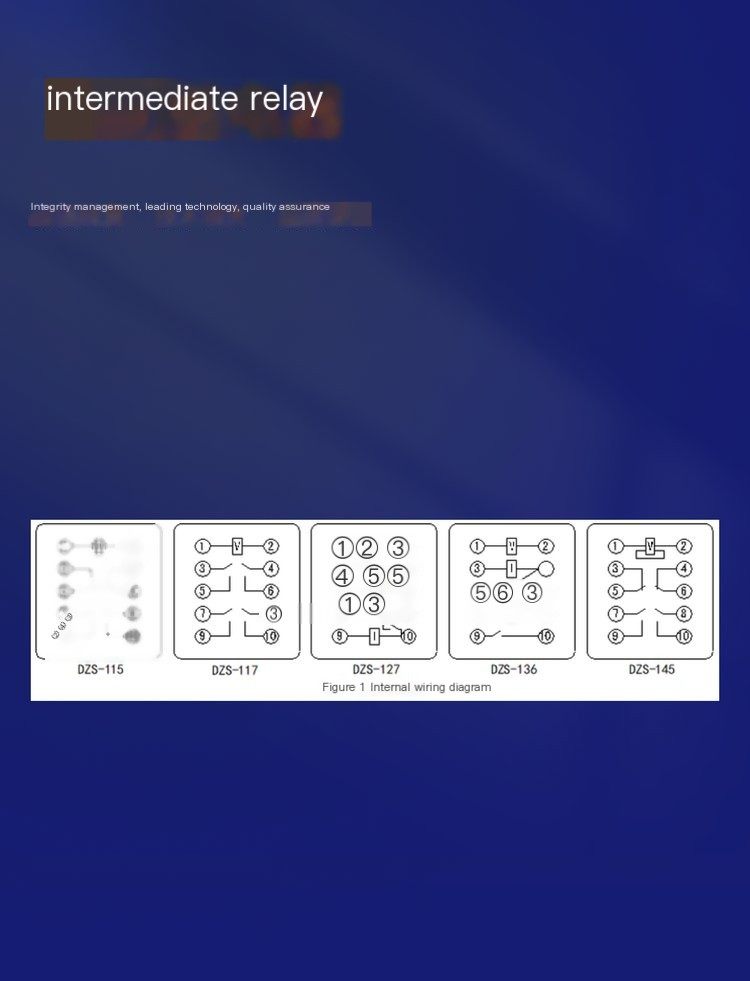

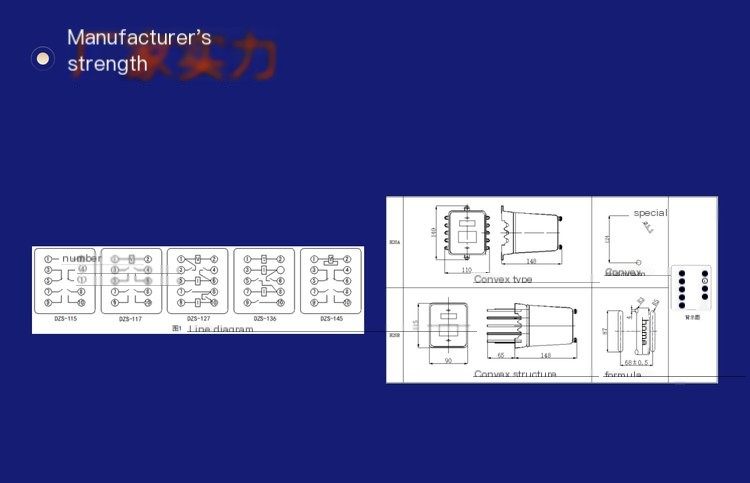

Protruding board front wiring/board back wiring
Wiring Method

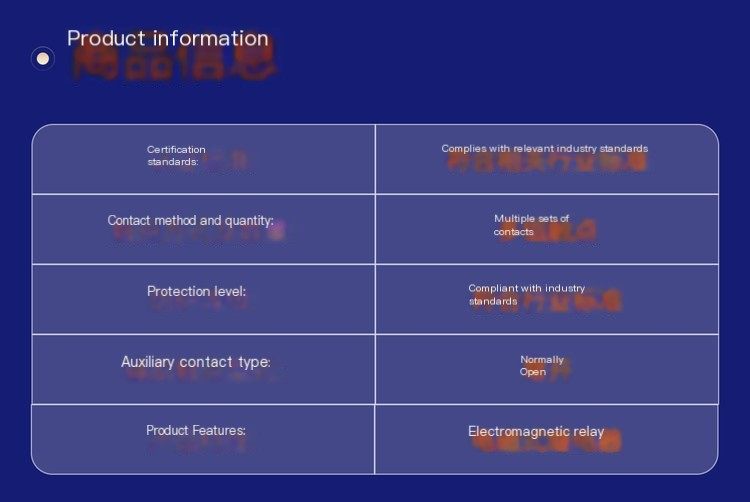

Compliant with relevant industry standards
Certification Standards
According to specific models and scenarios Confirm
Installation Method
Multiple sets of contacts
Contact Method and Quantity
Compliant with industry standards
Protection Level
Not less than 80% rated current (only referring to DZS-127, 136 types)
Holding Current
Normally open
Auxiliary Contact Type
DZS-115 117 type: not greater than 3.3 watts
Power Consumption
electromagnetic relay
Product Features
not less than 0.06 seconds
Action Time
220
Rated Voltage
DC
Control Power Frequency
determined according to specific models and environmental conditions
Operating Temperature
rated voltage
Coil Pull in Voltage
power, automation control and other fields
Scope of Use
less than 70% rated voltage
Coil Release Voltage
in accordance with the table regulations
Contact Capacity (250VAC)
DZS-145 type: under rated voltage, the power on time is not less than 0.5 seconds
Return Time
some models are delayed action
Delay
protection circuit for DC operation
Application Location
voltage winding can withstand 110% of rated voltage for a long time, not exceeding 60 ℃
Winding Temperature Rise
nationwide
