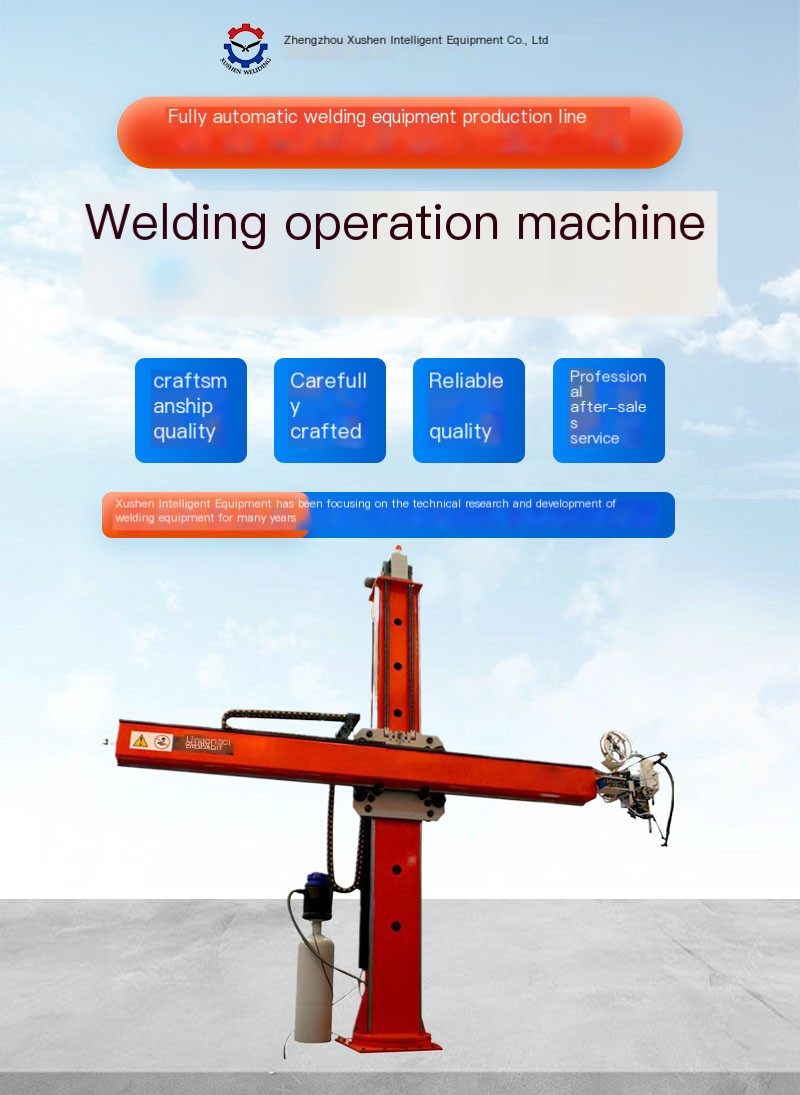

Cross shaped operating machine - Xushen Intelligent Equipment - Automatic Welding Center Equipment - Internal and External Longi

$2857.14 ~ 14285.71
Reference Price
1set (Min. Order)
model
CZ8 * 8
$2857.14
Ship From
Zhengzhou City, Henan Province
Shipping
To be negotiated with the supplier
Customization
For customization requests, please
Product Recommendations
View Details
Xushen Intelligent Equipment _ Supporting Equipment _ Adjustable Welding Roller Frame _ Wide Speed Control Range - Customizable
$4,285.71
View Details
Xushen Intelligent Equipment Manufacturer Welding Displacement Machine Workbench Mechanical Industry Welding Auxiliary Machine
$14,285.71
View Details
Manufacturer of Xushen Intelligent Equipment Auxiliary Equipment Automatic Welding Operating Machine
$3,571.43
View Details
Xushen Equipment Adjustable 100 ton Roller Frame - Used for Welding, Polishing, etc. of Cylindrical Cylinders
$4,285.71
View Details
Roller frame welding auxiliary equipment KT series 40 ton adjustable hydraulic assembly, customizable walking
$14,285.71
View Details
Xushen Automation Welding Equipment -10 * 10 Cross shaped Operating Machine - Intelligent Equipment Welding Auxiliary Machine
$14,285.71
View Details
Xushen Intelligent Welding Equipment -8 * 8-meter Cross shaped Operating Machine - Automated Welding Workstation Equipment
$14,285.71
Key Attributes
Details
Price Disclaimer
Does it support customized processing
Yes
speed regulation method
Variable frequency stepless speed regulation
working voltage
380V
type
Cross type
column rotation range
± 180 °
model
CZ8 * 8
color
Blue (customizable)
second-hand
No
series
CZ series
number of phases
Three phase five wire
welding type
Submerged arc gas argon arc
lifting method
Chain lifting
lifting reducer
Worm gear
expansion method
Gear rack
welding machine specifications
MZ630/1000/1250
effective stroke of beam lifting (mm)
8000
effective stroke of beam expansion and contraction (mm)
8000
guide rail form
Rectangular rail
maximum height of beam (mm)
8720
minimum height of beam (mm)
720
total height of equipment (mm)
10585
height with rotation (mm)
10680
height with trolley (mm)
11095
lifting speed (mm/min)
1000
expansion speed (mm/min)
100-1000
trolley walking speed (mm/min)
800
internal gauge (mm)
2500
column rotation angle (°)
± 180
column rotation speed (rpm)
0.14
