Navico M-bus Communication Precision Casting Flange Connection Two way Electric Flow Control Valve

Photos

Attributes

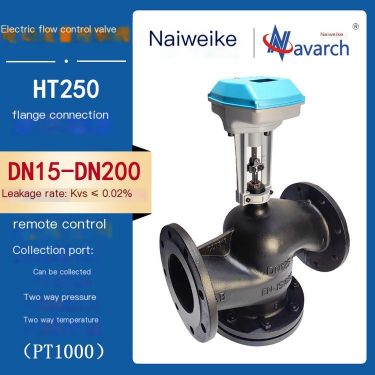

Navico M-bus Communication Precision Casting Flange Connection Two way Electric Flow Control Valve

$242.86 ~ 314.29

Reference Price

1table (Min. Order)

electric control valve

DN15

Negotiable

DN20

Negotiable

Ship From

Jinan City, Shandong Province

Shipping

To be negotiated with the supplier

Customization

For customization requests, please

Product Recommendations

View Details

Intelligent electric balance valve remote control analog quantity adjustment type 0-10V/4-20mA proportional adjustment

$314.29

View Details

Nike Intelligent Control Valve V-shaped Valve Core IP68 Waterproof Multi Communication Data Acquisition Box Customizable

$328.57

View Details

Neveco PVC intelligent electric ball valve LORA remote control corrosion resistance and aging resistance

$285.71

View Details

Navico Electric Wireless Solar Stainless Steel Ball Valve Remote M-Bus Communication

$285.71

View Details

Intelligent household control valve remote control regulating type V-shaped valve core LORA communication battery power supply o

Nominal diameter

1cm

Quantity

1 piece

Support for customized processing

Yes

Imported

Packaging specifications

actuator+valve body

Origin

Jinan, Shandong

Functional use

Air conditioning system temperature control, process production temperature control, time-sharing flow control, pipe network balance system flow control, heat exchange station temperature control

Applicable range

Mainly used for flow control in regional heating systems and HVAC systems, requiring fluids with good dynamic stability, low noise, and low leakage levels.

Color

Blue black

Drive stroke

20mm, 40mm

Power supply voltage

AC24V 220V

Valve position control signal

0-10V, 4-20mA, three bit floating point, RS485, M-bus

Environmental temperature

-15 ℃~55 ℃

Nominal pressure

PN16 PN25

Applicable medium

Water, steam, heat transfer oil

Medium temperature

-25 ℃~350 ℃

Fluid characteristics

Equal percentage

Leakage rate

Kvs ≤ 0.02%

Valve stem, valve core, and seat

304 stainless steel

Marketable location

Beijing; Tianjin; Hebei Province; Shanxi; Inner Mongolia; Liaoning; Jilin; Heilongjiang Province; Shanghai; Jiangsu; Zhejiang; Anhui; Fujian; Jiangxi; Shandong; Henan; Hubei; Hunan; Guangdong; Guangxi; Hainan; Chongqing; Sichuan Guizhou; Yunnan; Xizang; Shaanxi Gansu; Qinghai; Ningxia; Xinjiang

Material

HT250/ductile iron/cast steel/stainless steel

Model

DN15-DN200
