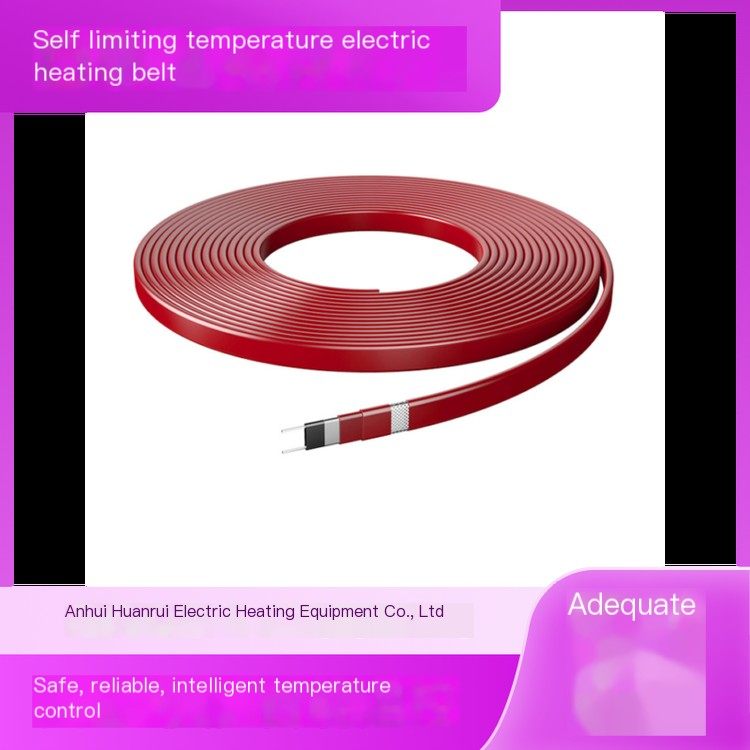

Ultra high temperature self limiting electric heat tracing belt suitable for special working conditions of high-temperature proc
$negotiable /
Reference Price (Min. Order)
Ship From
Hefei, Anhui
Shipping
To be negotiated with the supplier
Customization
For customization requests, please
Ask us in WhatsApp:
Scan the QR code
Product Recommendations
Key Attributes
Details
Price Disclaimer
Brand
Self Limiting Temperature Electric Heat Tracing Brand
Outer Sheath
Fluoroplastic
Operating Environment
Explosion proof, Corrosive and Marine Environment
Intelligent Temperature Control Characteristics
No need to install additional temperature controllers, power output can be adjusted independently according to environmental temperature
Resistance per Meter at Room Temperature
Determined according to specific operating environment
Main Applications
Ultra high Temperature Heat Tracing
Protection Methods
Intelligent Temperature Control
Conductor Material
Tin Plated Copper Busbar
Applicable Scenarios
Industrial occasions requiring ultra-high temperature heat tracing
Maximum Maintenance Temperature
50
Sheath Layer
Fluoropolymer, polyolefin or elastomer
Shielding Layer
None
Surface Temperature
Up to 150
Product Characteristics
Safe and reliable, excellent self limiting temperature characteristics
Rated Voltage
110V/220V/380V
Applicable Fields
Heating applications such as pipelines, tanks, valves, flanges, etc.

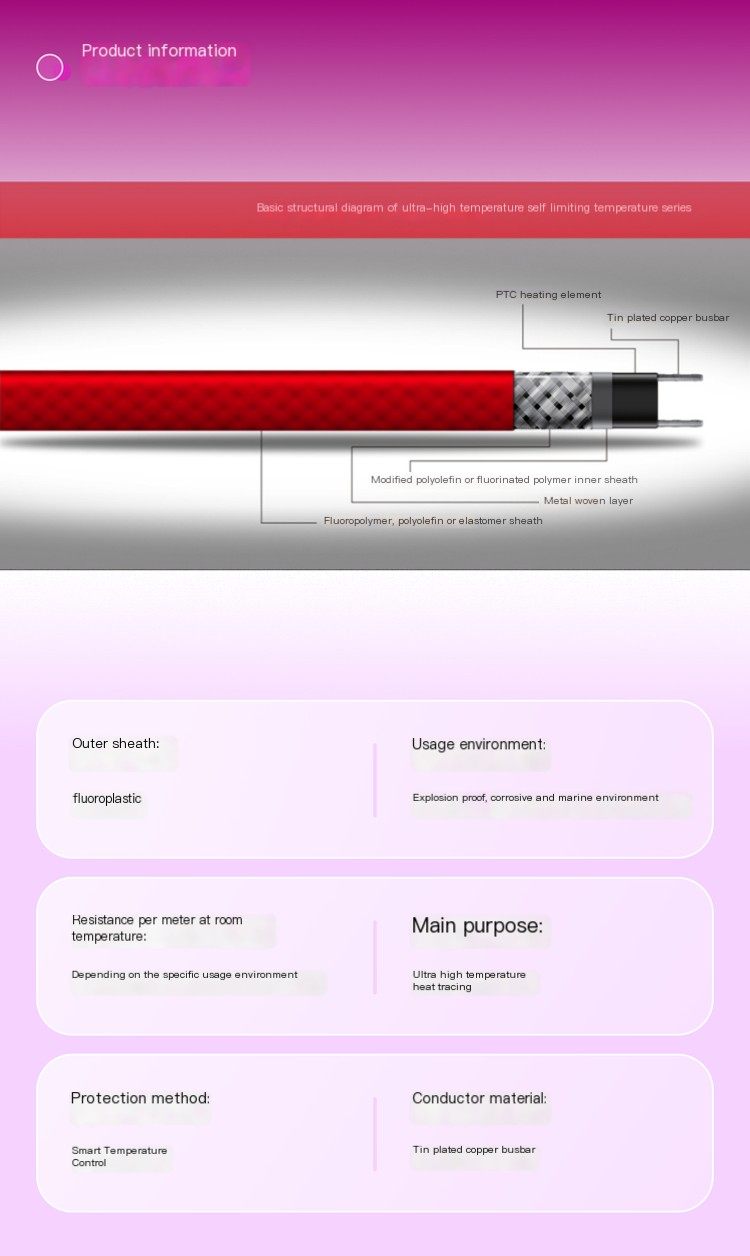

Core Wire
Two parallel busbars in parallel
Certification
Relevant safety certifications
Conductive Plastic Layer
Fluorinated polymers
Insulation Layer
Modified polyolefins or fluoropolymers
Standard Length
Customized according to customer needs
Rated Output Power
10~80 (W/m)
Explosion proof Mark
Exeb IIIC T3 Gb, Extb IIIC T195 ℃ Db
Total Resistance Value
Determined according to temperature changes
Related Features
Can be used interchangeably without local overheating or burning
Marketable Place
National
