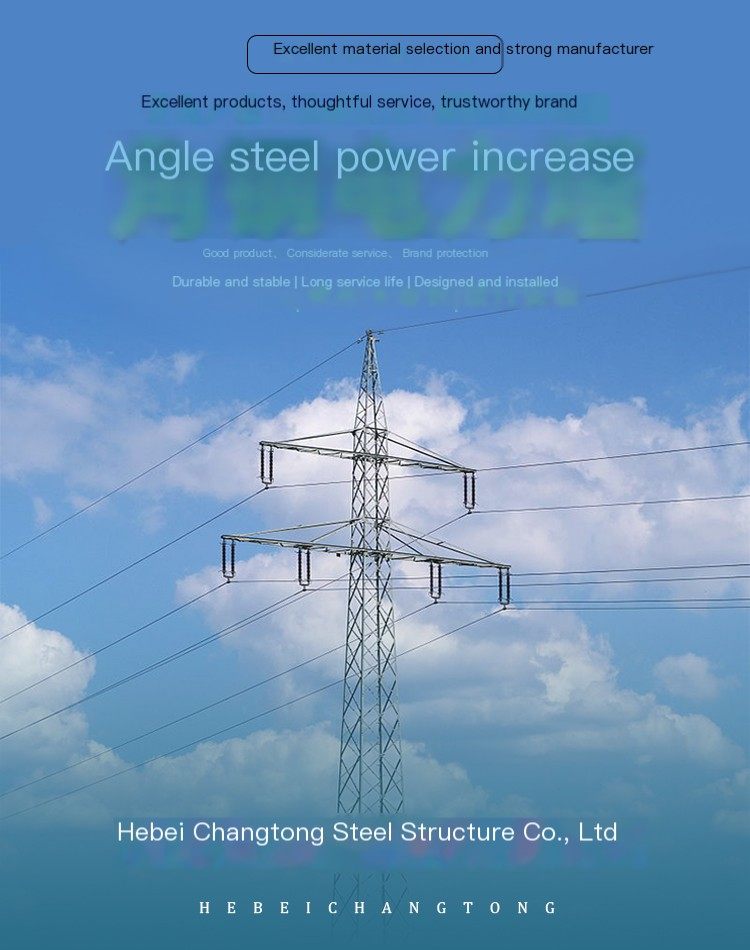

35kV power tower spanning angle steel supports processing and installation of various tower types

Photos

Attributes

35kV power tower spanning angle steel supports processing and installation of various tower types

$657.14 ~ 685.71

Reference Price

1ton (Min. Order)

ton

$657.14

Ship From

Hengshui City, Hebei Province

Shipping

To be negotiated with the supplier

Customization

For customization requests, please

Product Recommendations

View Details

Radar tower manufacturer, weather radar tower, weather observation tower, sturdy and durable, produced according to the diagram

$914.29

View Details

Changtong Power Tower provides design and installation warranty for high-voltage transmission line towers for 50 years

$642.86

View Details

Changtong produces 220kV power steel pipe poles, 13m power steel pole model and specification processing manufacturer

$971.43

View Details

Power tower manufacturer, transmission line overhead tower, power tower can be customized according to needs, fast construction

$757.14

View Details

35KV power tower angle steel communication transmission power overhead line tower hot-dip galvanized communication wire steel pi

$942.86

View Details

Manufacturer of 33 meter terminal power tower with high-quality customized steel plate thickness of 6mm-40mm

$800.00

View Details

Manufacturing and processing of steel pipe poles, single circuit power steel poles, and straight steel poles for 10KV transmissi

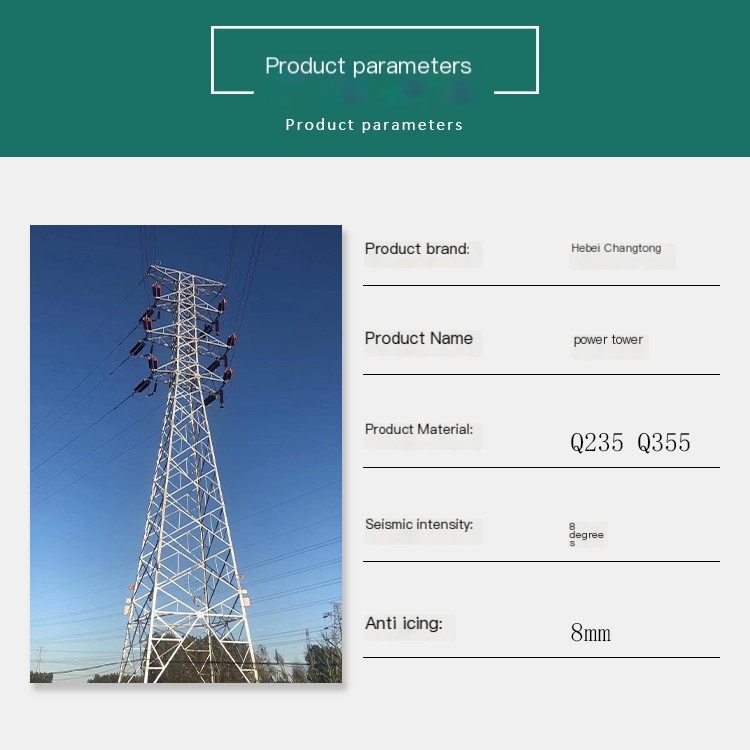

Process

Pipeline punching welding

Applicable field

Power transmission

Applicable star rating

5-star

Core material

Steel

Shape

Four column angle steel

Weight

7 ton kg

Purpose

Power transmission overhead overhead overhead overhead overhead line

Customizable

Qualifications

Complete

Scope of use

Power transmission Overhead power line

Steel plate thickness

-6mm to -40mm

Steel consumption per square meter

160

Whether to provide design services

160

Product name

High voltage power line tower

Steel model

Q235, Q355, Q420

Whether to comply with national standards

It is

Height

30 meters

Foundation

concrete pouring

Grounding resistance

<4 ohms

Main material model

200 angle steel -100 angle steel

Auxiliary material model

160 angle steel -40 angle steel

Production mode

assembly line punching welding

Connection method

bolt welding

Bolt

4.8 level, 6.8 level, 8.8 level, bottom section anti-theft bolt

Temperature adaptation

-45 ℃ to+50 ℃

Basic wind pressure

12 level (30 meters/second) or above

Seismic intensity

8 degrees

Anti icing

8mm

Anti corrosion treatment

hot-dip galvanizing

Galvanized thickness

86 microns or above

Lightning protection form

lightning rod

Verticality

1/1000

Installation cycle

5-10 days

Transportation cycle

3-5 days

Shipping method

packaged and shipped

Can factory inspection be conducted

factory verifiable

Brand

Hebei Changtong
