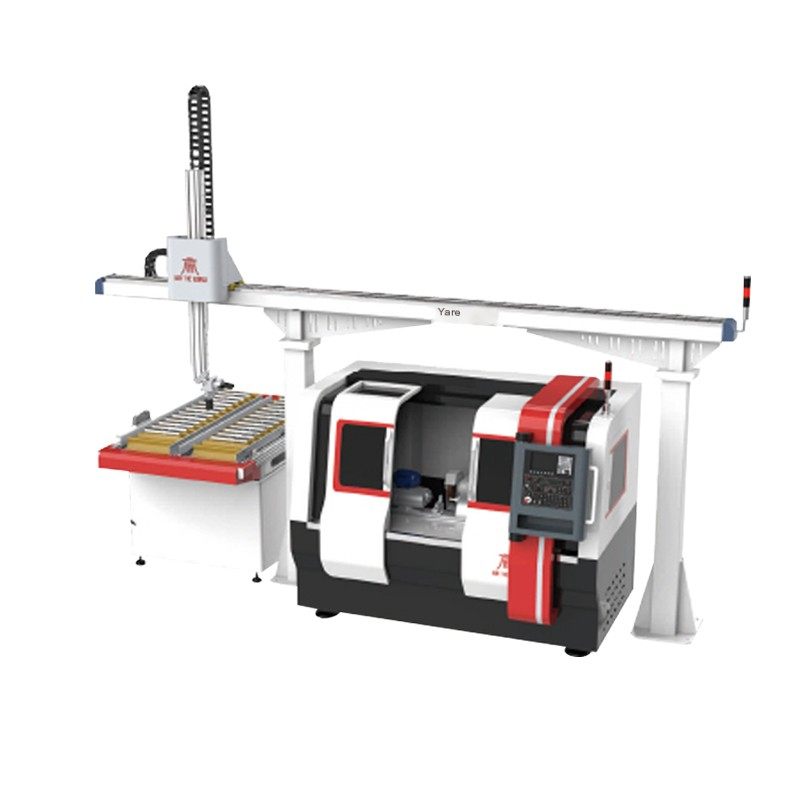

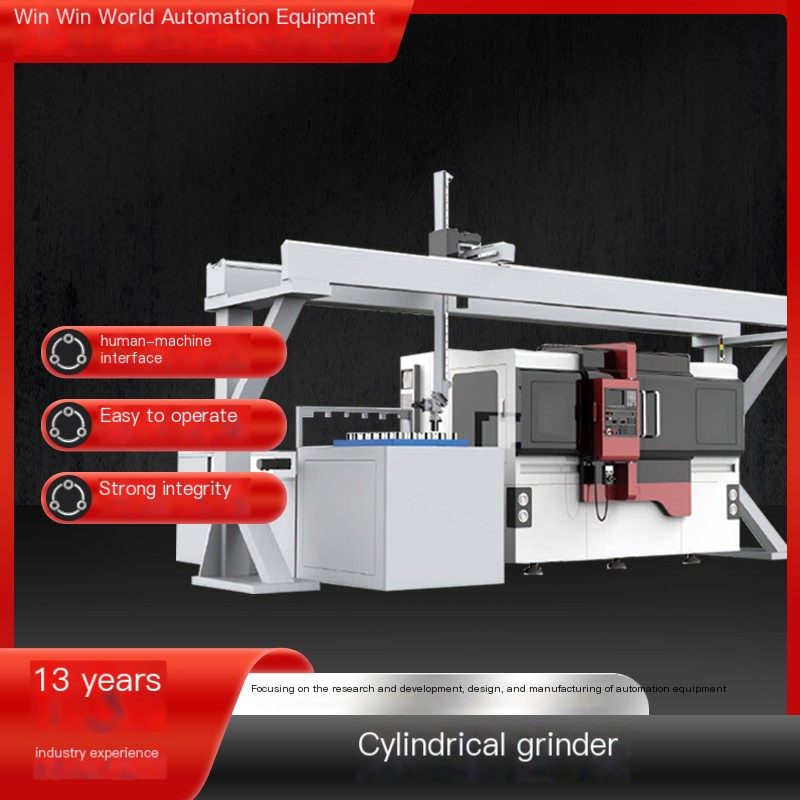

External cylindrical grinder with simple operation and high stability for machining parts

Photos

Attributes

External cylindrical grinder with simple operation and high stability for machining parts

$17142.86

Reference Price

1table (Min. Order)

cylindrical grinder

cylindrical grinder manufacturer

$17142.86

Ship From

Changzhou City, Jiangsu Province

Shipping

To be negotiated with the supplier

Customization

For customization requests, please

Product Recommendations

View Details

High precision CNC Heartless Grinding Machine, Heartless Machine, Thoughtful Raw Material Service, Winning World

$1,269.71

View Details

Yingshi Micro Heartless Grinding Machine Oil Cylinder Grinding Processing Engineering Machinery Support Customization

$1,269.71

View Details

Yingshi Stable Operation System Stable Automotive Parts Special External Polishing Machine Surface Treatment

$428.43

View Details

Yingshi High quality team for machining automotive parts, bearings, and centerless grinders with walking machines

$1,269.71

View Details

High quality team for small CNC cylindrical grinding machine, one to two loading and unloading, Win Shi

$2,857.14

View Details

Yingshi Multi functional Intelligent Heartless Grinding Machine Feeding Machine Fully Automatic Receiving and Feeding Customizab

$285.71

View Details

Yingshi intimate service metal cylindrical grinder chuck grinding support customization

Does it support customized processing

Yes

origin

Changzhou

product name

External grinder

type

Lathe

product type

New

export

installation form

Floor standing

processing accuracy

Precision

equipment configuration

Servo motor

sensor

24V

air pressure

6-8Mpa

power

2.5kw

control form

CNC/ordinary

working voltage

220V

pneumatic island valve

24V

color

Metallic

sales area

National

control mode

CNC

distribution mode

Logistics

power type

Electric, pneumatic, hydraulic

maximum worktable rotation diameter

270mm

spindle form

Synchronous or centering

maximum grinding wheel linear speed

35m/s

grinding wheel size (diameter x width x aperture)

405mmx32mm~50mmx127

grinding wheel spindle motor

3.75KW

grinding aperture depth

125mm

grinding aperture range

13-80mm

maximum grinding length

500mm

headstock motor power

1.1kw

grinding wheel frame housing rotation

360 Degrees

upper worktable rotation angle

-3~+6 degrees

center height

125mm

feed angle

90 °

longest distance between two top needles

650mm

X Minimum feed rate

0.001mm

Maximum grinding diameter

270mm

Top needle specification 1

MT-4

Maximum grinding straight diameter

200mm

Maximum worktable movement

980mm

Top distance

500mm

Grinding wheel shaft speed

1820 revolutions per minute

worktable reciprocating speed

100-4000 millimeters per minute

Machine weight

Approximately 3850 kilograms

Cooling pump motor power

0.125kw

Brand

Winning World
