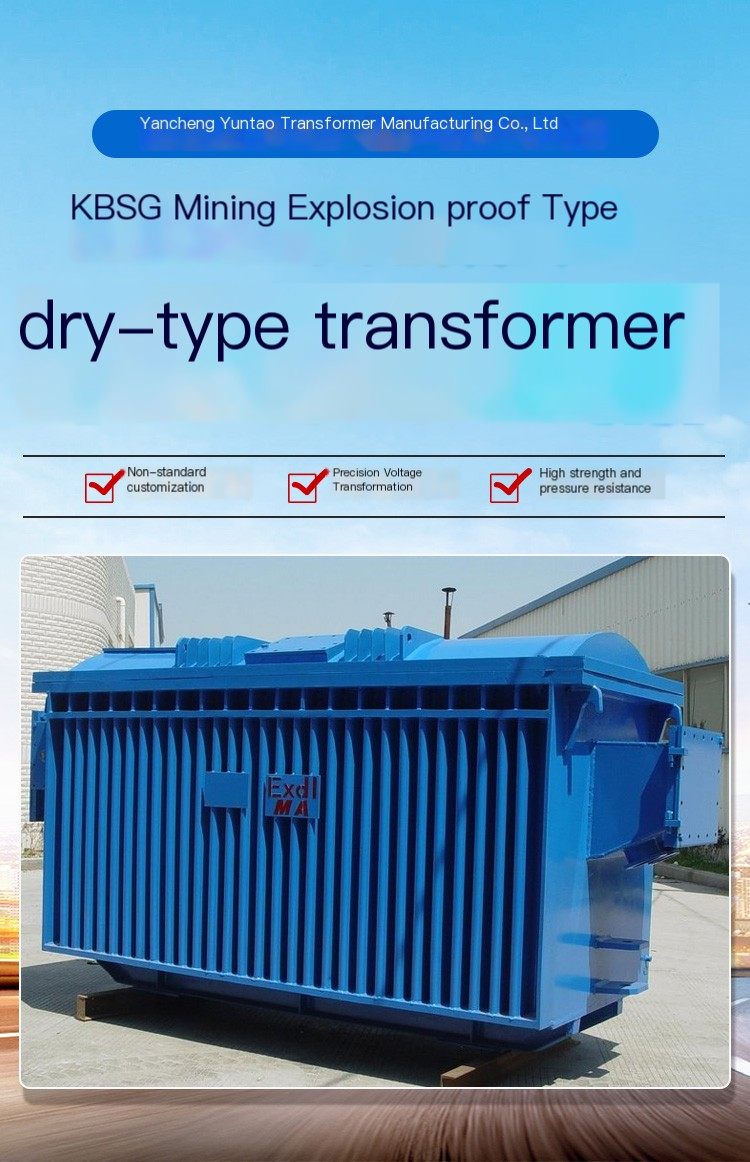

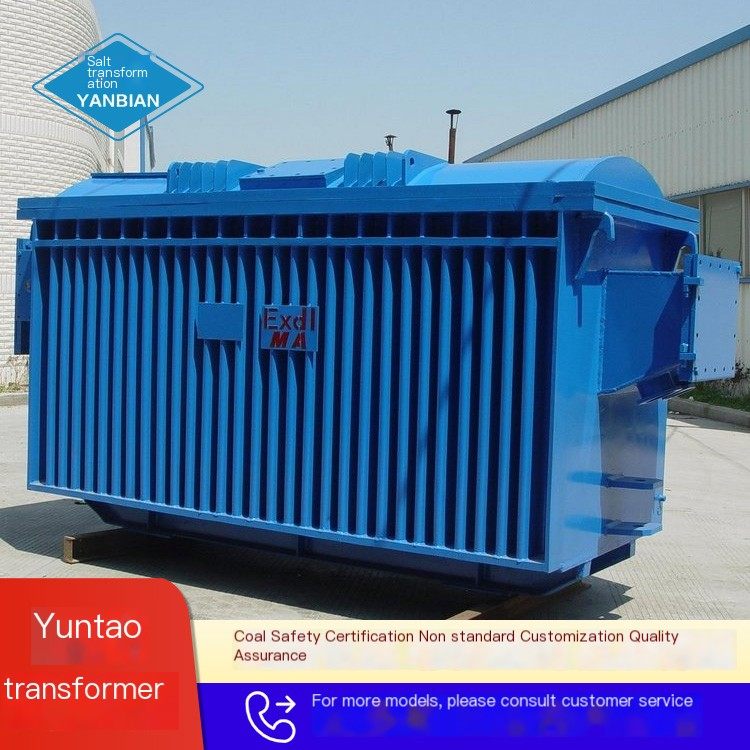

Mining Explosion proof Dry type Transformer Mobile Substation KBSG-1000/10 for Coal Mine Underground

Photos

Attributes

Mining Explosion proof Dry type Transformer Mobile Substation KBSG-1000/10 for Coal Mine Underground

$15714.29

Reference Price

1table (Min. Order)

product name

KBSG-1000 /10 mining explosion-proof transformer

$15714.29

Ship From

Yancheng City, Jiangsu Province

Shipping

To be negotiated with the supplier

Customization

For customization requests, please

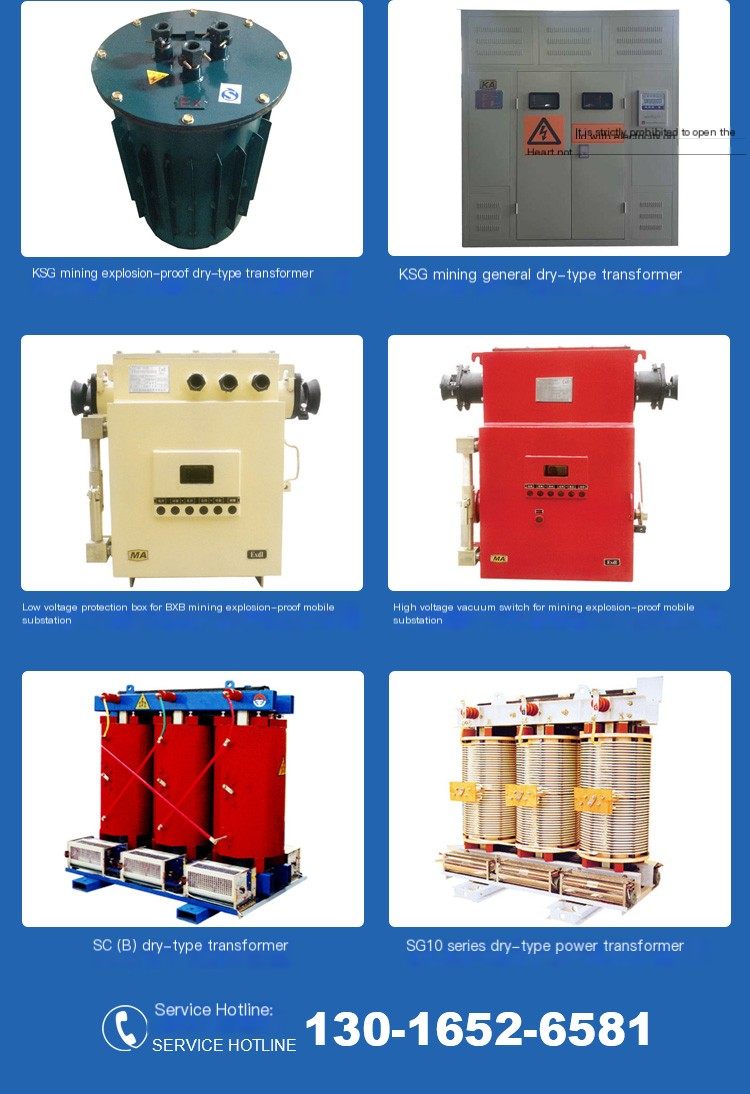

Product Recommendations

View Details

KBSGZY-50/6 switch of mining explosion-proof mobile substation with protection function and high-quality material selection

$14,000.00

View Details

Mining Explosion proof Mobile Substation Dry type Transformer KBSGZY-800/6 MA Certification Coal Mine Underground Certification

$16,428.57

View Details

Yuntao resin insulated dry-type power transformer flame retardant, explosion-proof, and environmentally friendly SC (B) 11-1000

$7,142.86

View Details

Mining general three-phase dry-type transformer KSG-315kVA with KA KY certified full copper shell

$6,142.86

View Details

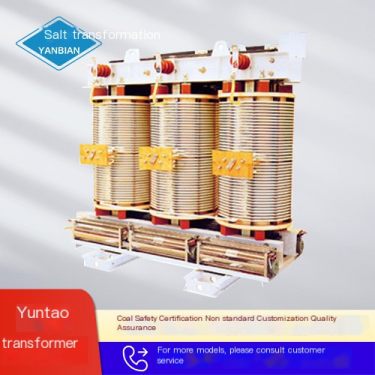

SG10 series non-standard customized dry-type power transformer, Yuntao specializes in transformer manufacturing

$11,142.86

View Details

Yuntao Mining Explosion proof Mobile Substation KBSGZY-1250 /10 MA Certification Coal Mine Underground Certification

$28,285.71

View Details

KBSG-2500/10 Explosion proof Mobile Substation Explosion proof Coal Mine Underground Transformer for Salt Transformer Mining

Does it support customized processing

Is it imported

Installation location

Underground

Transformer name

Mining explosion-proof transformer KBSG-1000/10

Voltage ratio

10/0.4

Number of power phases

Three phase

Rated voltage

10kvV

Rated capacity

1000kVA

Protection level

IP20

Operating temperature

-20 ℃~35 ℃

Cooling form

Air cooling

Life

30 years

Output voltage

400V

Input voltage

10000V

Iron core form

Circular

Appearance structure

Vertical

Series

KBSG

Efficiency

99%

Application scope

Mine

Quality assurance

1 year

Weight

2500kg

Certification

ISO9001

Iron core shape

Circular

Moisture proof method

Encapsulation

Model

KBSG-1000/10

External dimensions

1750 * 1450 * 1700mm

Brand

Salt Transformation
